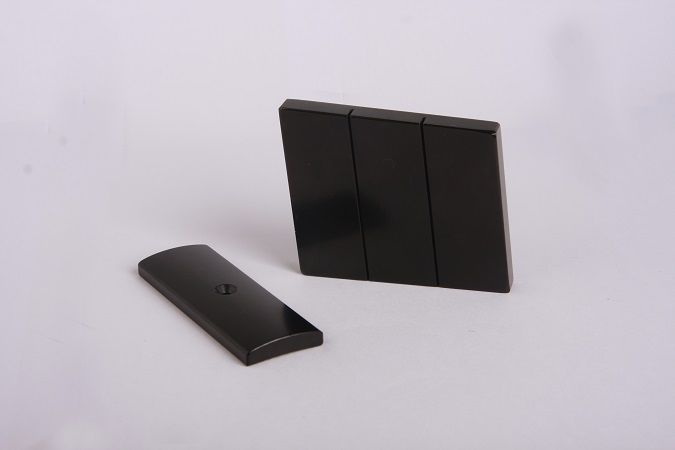

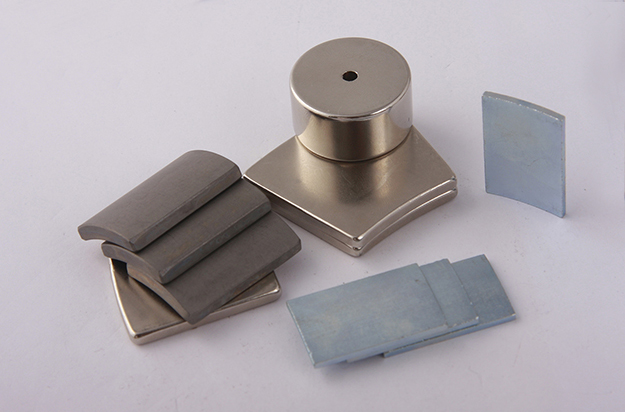

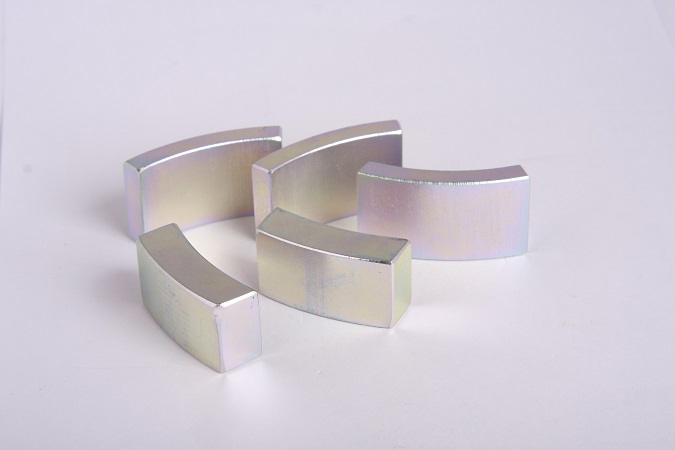

Neodymium Arc Segment Magnets

Characteristic

There are various shapes of the segment according to your design, such as the arc, tile, sector, trapezoid. They are usually used in elevator motors, servo motors, wind turbine generators, electric vehicle, other permanent magnet motors.

Appearance: Smooth and bright surface without burrs.

Advantages: Watt magnet has better air tightness and improves the efficiency of motor at high speed.

Customized service

Grades: N30~N52, N30M~N52M, N30H~N52H, N30SH~N48SH, N25UH~N45UH, N28EH~N40EH, N28AH~N40AH

Dimensions: According to customer requirements, different shapes and types of tiles are produced, such as sector, inclined tiles, rotary tiles, etc.

Magnetization mode: According to the actual application of customer magnetic circuit design, most of them are radial charging.

Coating: conventional nickel-copper-nickel, blue-white zinc, phosphating/passivation, epoxy (phosphating, nickel-copper, nickel-copper-nickel base); other special coatings can also be provided: Teflon, gold plating, silver plating, Perrin, aluminium coating (new coating)

Application

Mainly used in all kinds of efficient and energy-saving motors: elevator motor, servo motor, wind turbine generator, electric vehicle, other permanent magnet motor, etc.

Other areas: safety systems, magnetic separators, magnetic resonance imaging, medical industry, special door locks, filters and filters, sensors, speakers, microphones/ear brushless motors, micro motors, VCM (voice coil motor), magnetic coupling, magnetic suckers, magnetic tools, etc.
